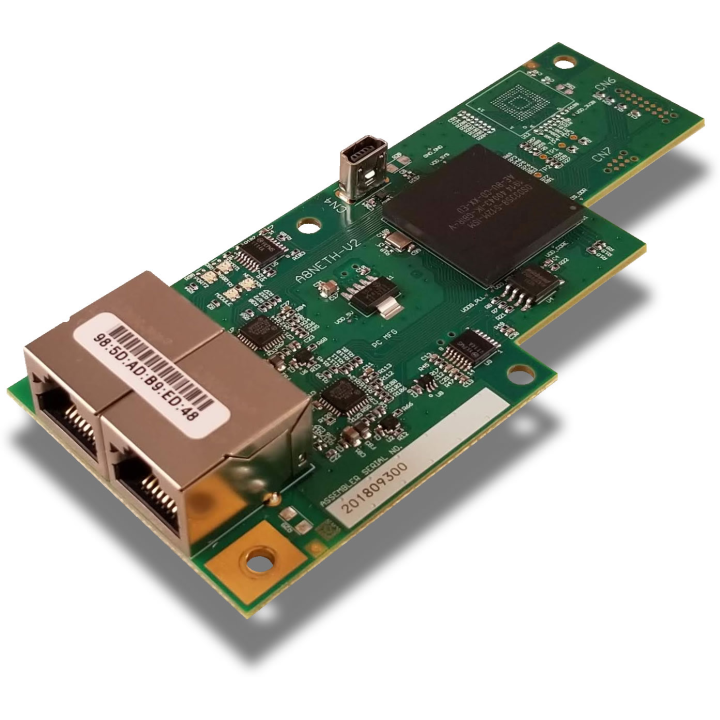

Mitsubishi 800-series ASD dual-port Ethernet option card.
EtherNet/IP (DLR), Modbus/TCP, BACnet/IP, PROFINET IO (MRP), IEC 61850, CC-Link IE Field Basic, SLMP, MELSEC MC Protocol, and AB CSP Industrial Ethernet connectivity for Mitsubishi 800-series (FR-A800/F800) adjustable speed drives.
Contact Mitsubishi for pricing and availability
The A8NETH-V2 multiprotocol communication interface provides Ethernet-based network connectivity to the Mitsubishi 800-series adjustable speed drives (ASDs). Compatible inverter models include the FR-A800 and FR-F800.
The A8NETH-V2 provides dual RJ-45 ports with an embedded IEEE 802.3 10BASE-T/100BASE-TX Ethernet switch and supports star, daisy-chain, and redundant ring topologies. The shielded RJ-45 connectors accept standard CAT5-type 8-conductor unshielded twisted-pair (UTP) patch cables. MDI/MDI-X auto-crossover allows the use of any combination of straight-through and cross-over Ethernet cables. The interface card supports multiple protocols simultaneously.
Support for redundancy protocols, such as MRP (Media Redundancy Protocol) and DLR (Device Level Ring), allow for fast recovery and high availability.
The configuration studio supports local and remote discovery and configuration as well as real-time monitoring and control. A configurable network timeout action can also be programmed that allows parameters to have their own unique "fail-safe" conditions in the event of a network interruption.
Manuals Version Information Network Documents Web ServerAssociated Links
Mitsubishi Configuration Studio
