G500ETH

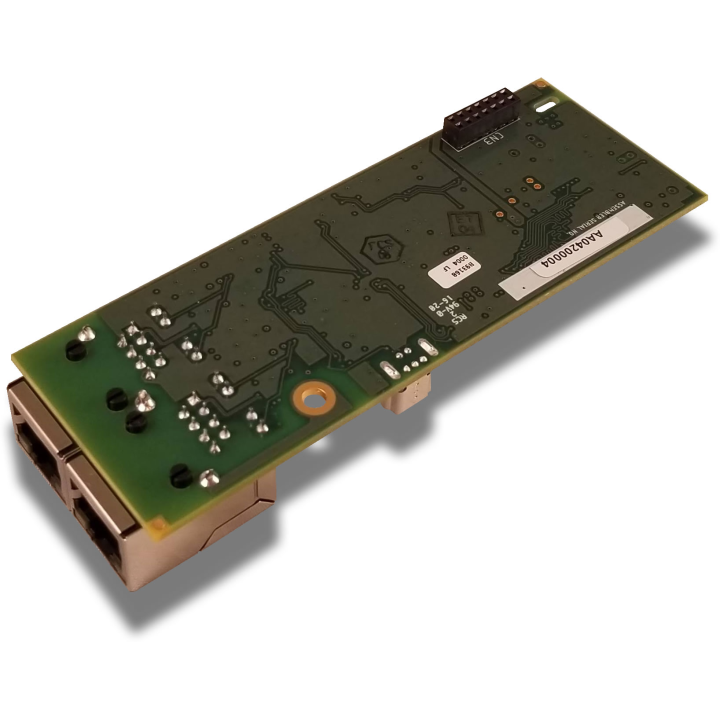

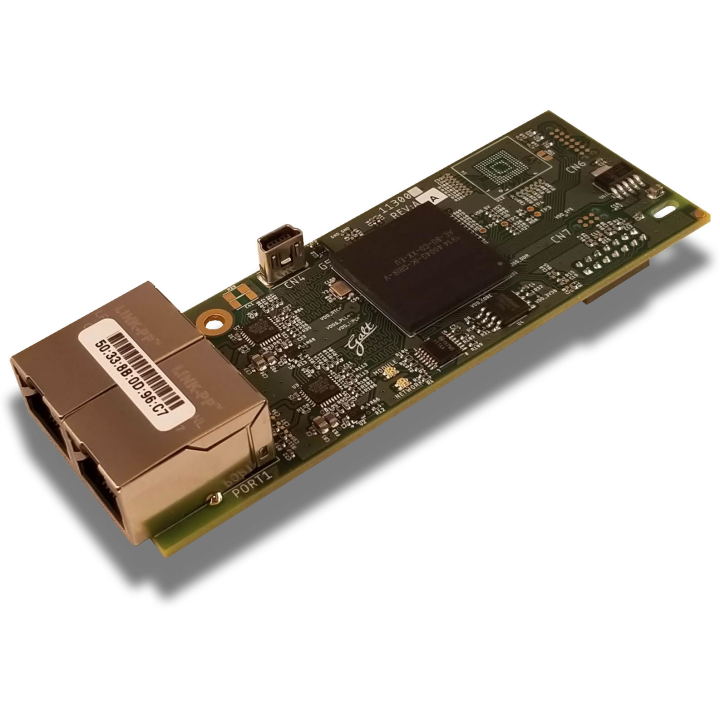

Galt Electric G500 series dual-port Ethernet option card.

EtherNet/IP (DLR), Modbus/TCP, BACnet/IP, PROFINET IO (MRP), IEC 61850, CC-Link IE Field Basic, SLMP, MELSEC MC Protocol, and AB CSP Industrial Ethernet connectivity for Galt Electric G500 series inverters.

Contact Galt Electric for pricing and availability

The G500ETH multiprotocol communication interface provides Ethernet-based network connectivity to the Galt Electric G500 series inverters.

The G500ETH provides dual RJ-45 ports with an embedded IEEE 802.3 10BASE-T/100BASE-TX Ethernet switch and supports star, daisy-chain, and redundant ring topologies. The shielded RJ-45 connectors accept standard CAT5-type 8-conductor unshielded twisted-pair (UTP) patch cables. MDI/MDI-X auto-crossover allows the use of any combination of straight-through and cross-over Ethernet cables. The interface card supports multiple protocols simultaneously.

Support for redundancy protocols, such as MRP (Media Redundancy Protocol) and DLR (Device Level Ring), allow for fast recovery and high availability.

A configurable network timeout action can also be programmed that allows parameters to have their own unique "fail-safe" conditions in the event of a network interruption.

Manuals Version Information Network Documents Firmware
  • The latest firmware is included in the latest Galt Electric Configuration Studio
Software Configurations

The Galt Electric Configuration Studio is required to view, edit, and download configurations.

Sample Application Programs

Associated Links

galt modbus bacnet bacnet internationalEtherNet/IP ODVA pto profinet iec61850rohs

  • Brand

  • Ethernet Ports
    2
  • USB Ports
    1
  • LED Indicators
    Yes
  • Ethernet Protocols
    BACnet/IP Server, CC-Link IE Field Basic Server, CSP Server, Device Level Ring (DLR) Node, EtherNet/IP Server, IEC 61850 Server, Media Redundancy Protocol (MRP) Client
  • Ethernet Protocols (Continued)
    Mitsubishi MELSEC MC Protocol Client, Mitsubishi MELSEC MC Protocol Server, Modbus/TCP Server, PROFINET IO, SLMP Client, SLMP Server
  • Power Supply
    Inverter, USB
  • Field-Upgradeable
    Yes
  • User Configuration Interface
    Galt Electric Configuration Studio via USB and Ethernet
  • Configuration File Upload/Download
    Yes
  • Network Timeout Action
    Yes
  • Mounting Options
    Internal
  • Mounting Hardware Included
    Yes
  • RoHS Compliant
    Yes
  • Network Interface
    Ethernet
