RED-485

Richards Electric RS-485 dongle for Toshiba inverters.

BACnet MS/TP, Modbus RTU, Metasys N2, and Siemens FLN interface for Toshiba AS3, S15, NC3, AS1, 9-Series, and 7-Series inverters.

Contact Richards Electric Motor Company for pricing and availability

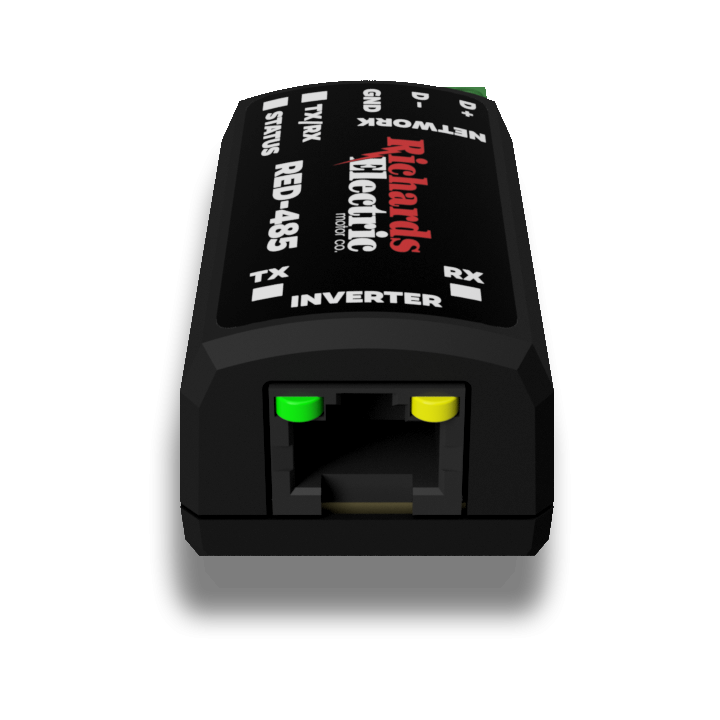

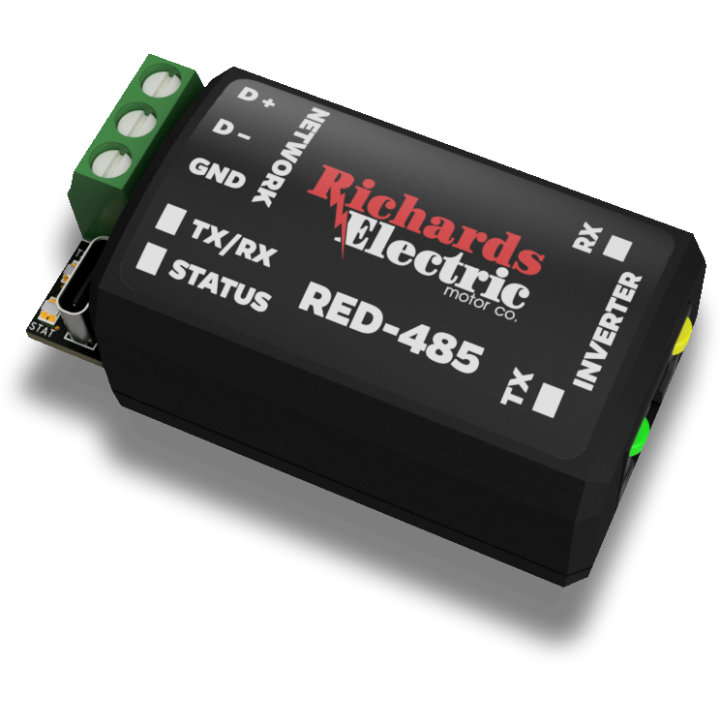

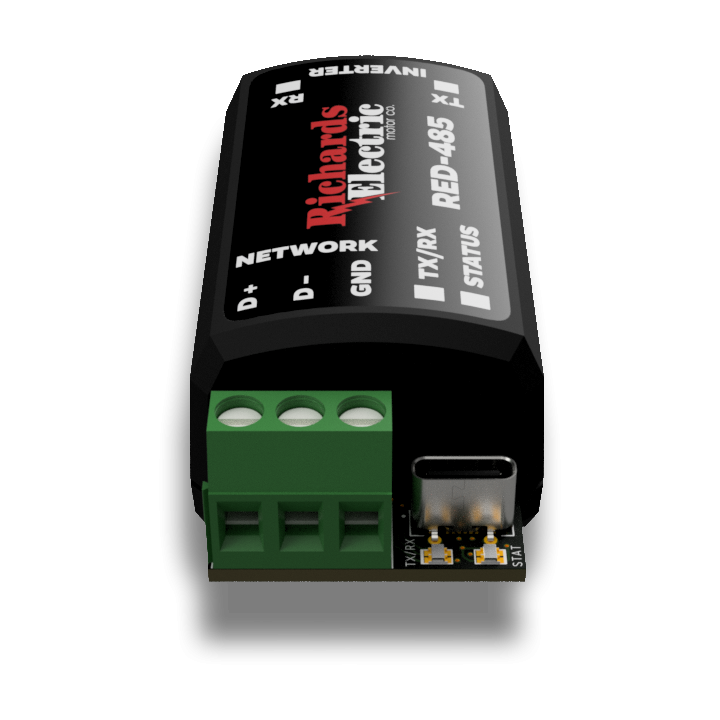

The RED-485 is a multiprotocol communication interface that allows information to be transferred seamlessly between a Toshiba inverter and several different RS-485-based fieldbus networks with minimal configuration requirements. The interface installs in-line between the automation system network and the inverter’s RS-485 port. The RED-485 presents a fixed, screw-style terminal block for connection to the RS-485 network. The interface is powered directly from the inverter, connecting via a standard Cat5 (or similar, e.g. Cat5e, Cat6, Cat6a, etc.) cable for both power and communication.

Manuals Protocol Documents Version Information ECAD Models Software

Associated Links

richards toshiba modbus bacnet bacnet international fln metasys n2 rohs

  • Brand

  • Host Interface
    RS-485 (RJ-45 Modular Jack)
  • RS-485 Ports
    2
  • USB Ports
    1
  • LED Indicators
    Yes
  • Serial Protocols
    BACnet MS/TP Server, Modbus RTU Slave, Metasys N2 Slave, Siemens FLN Slave, Toshiba ASD Master
  • Isolated
    No
  • Power Supply
    Inverter, USB
  • Field-Upgradeable
    Yes
  • User Configuration Interface
    Richards Electric NPU via USB
  • Mounting Options
    In-Line
  • Length
    2.266" (57.556 mm)
  • Width
    1.250" (31.750 mm)
  • Height
    0.950" (24.130 mm)
  • RoHS Compliant
    Yes
  • Network Interface
    RS-485 (Fixed Terminal Block)
