ASD-NANOCOM

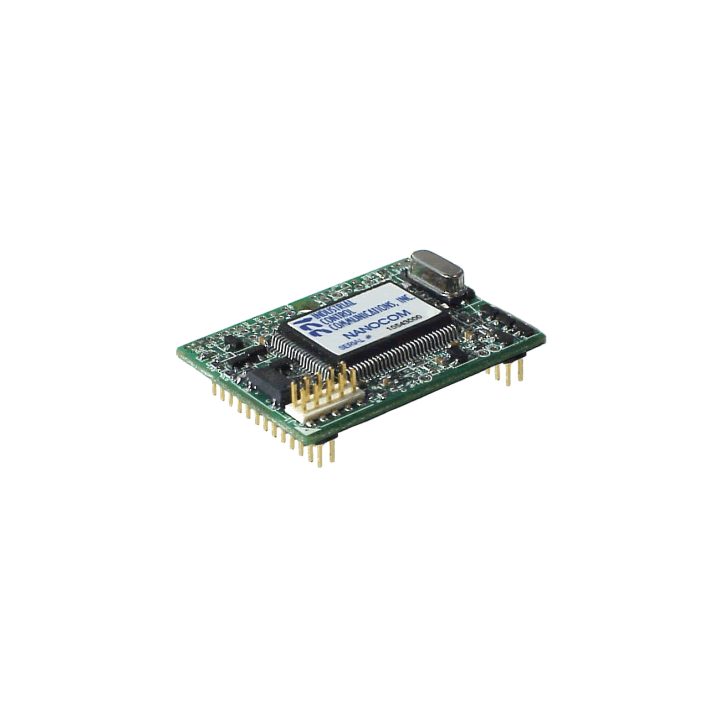

Toshiba Q7/G7/H7/W7 ASD communication card.

Metasys N2, Modbus RTU, and Siemens FLN RS-485 network connectivity for Toshiba Q7/G7/H7/W7-series ASDs.

This product has been discontinued and is no longer available for sale.

The ASD-NANOCOM multiprotocol communication interface provides RS-485-based network connectivity to Toshiba Q7/G7/H7/W7-series adjustable speed drives (ASDs). The ASD-NANOCOM connects directly to the drive's control board, and uses the drive's RS-485 port for network communications.

The ASD-NANOCOM supports four user-selectable registers can be designated for special processing. The use of these registers is protocol-dependent. An optional 1s-255s network timeout time can be selected. If a timeout setting is selected, then after the designated period of network inactivity the interface will perform actions to place the drive in a "failsafe" state. The specific action taken is protocol-dependent.

The Modbus RTU protocol allows all ASD parameters numbered FA00 - FFFF to be accessible as Modbus holding registers both at 0xFA00 - 0xFFFF (64000 - 65535) as well as 0x0A00 - 0x0FFF (2560 - 4095). This allows master devices that can index only 9999 total holding registers to access all available ASD information.

Manuals Version Information Firmware
  • All ASD-NANOCOM units with serial number 10544043 or higher have been released with firmware version 2.100.
  • All ASD-NANOCOM units with serial number 10543742 or higher have been released with firmware version 2.000.
  • All others were released with firmware V1.000.

Associated Links

toshiba modbus metasys n2 fln

  • Brand

  • LED Indicators
    No
  • Serial Protocols
    Metasys N2 Slave, Modbus RTU Slave, Siemens FLN Slave
  • Power Supply
    ASD
  • Field-Upgradeable
    No
  • Configuration File Upload/Download
    No
  • Alarms
    No
  • Network Timeout Action
    Yes
  • Mounting Options
    Internal
  • Mounting Hardware Included
    Yes
  • RoHS Compliant
    Yes
  • Network Interface
    RS-485
