DNET-1000

$775.00

DeviceNet Slave to RS-485 gateway.

Modbus RTU, BACnet MS/TP, Metasys N2, Siemens FLN, Generic Serial, M-Bus, DMX-512, Toshiba, Sullair, TCS Basys, A.O. Smith, MSA Chillgard, and more.

Contact ICC for Stock Availability
Quantity Unit price You Save
20 $750.00 $500.00
60 $725.00 $3,000.00

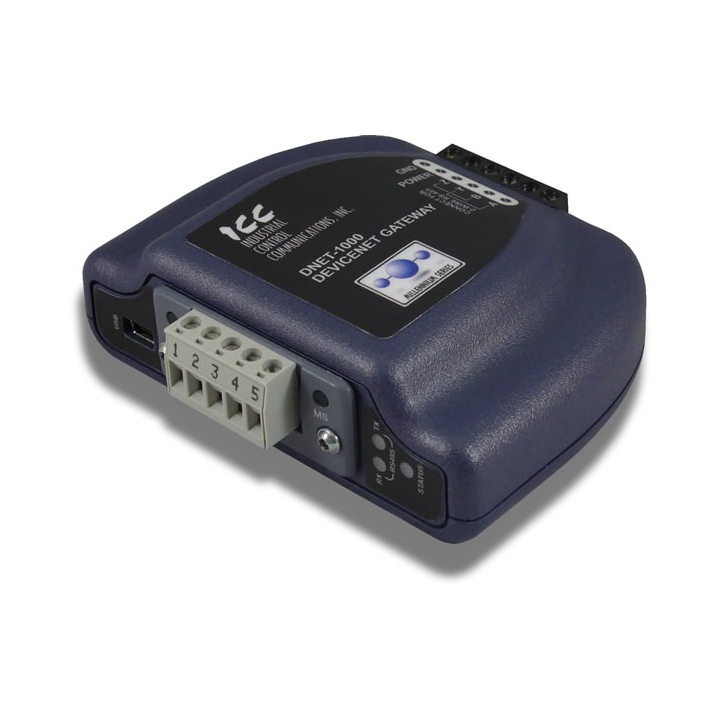

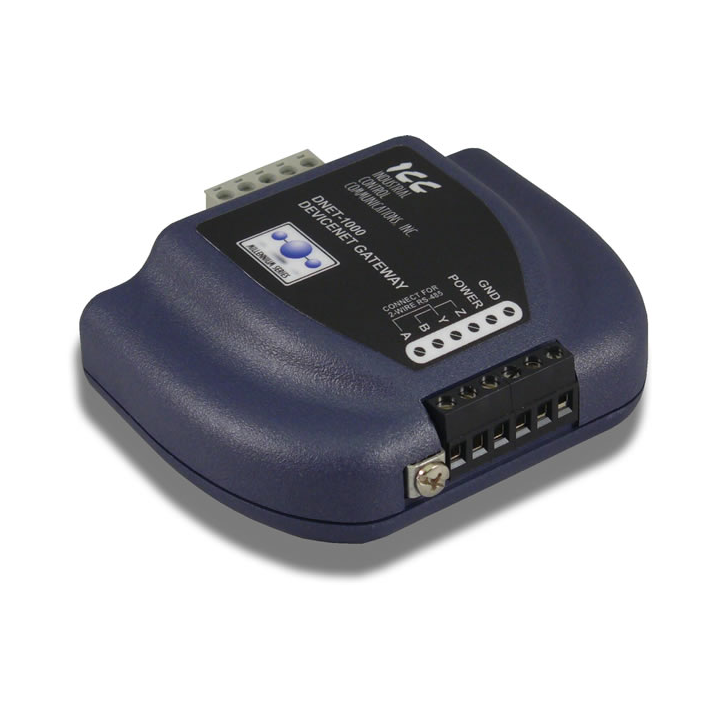

The DNET-1000 DeviceNet Gateway exposes data from RS-485 network devices to DeviceNet with minimal configuration requirements. The gateway provides a DeviceNet port (5-conductor pluggable terminal block style) and an RS-485 port (4-wire terminal block style ). Multiple RS-485 protocols are included free of charge.

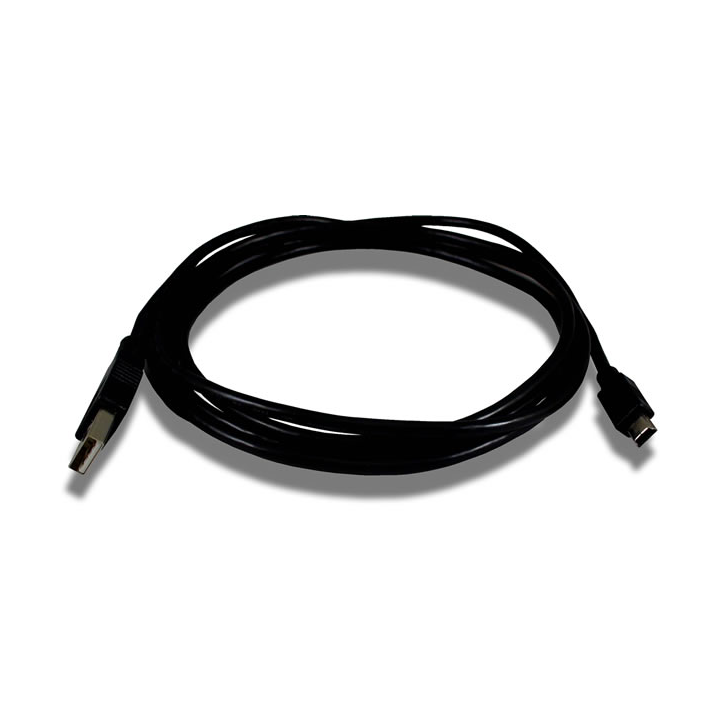

Configuration is performed using the ICC Configuration Studio software via a USB connection. PLC-style logical, arithmetic and filtering data manipulation operations, called Database Logic, allow the construction of complex autonomous data conditioning and control functions.

The DNET-1000 is a member of the ICC Millennium Gateway Series product family. Members of this family are designed to provide a uniform interface, configuration and application experience. This commonality reduces the user's learning curve, reducing commissioning time while simplifying support.

Brochure Manuals Version Information Drawings and Models Sample Configurations Software Object/Point Limitation Calculators Associated Links
odva devicenet modbus bacnet bacnet international toshiba sullair fln tcs basys msa mbus a.o. smith metasys n2 rohs

  • Brand

  • Fieldbus Ports
    1
  • RS-485 Ports
    1
  • USB Ports
    1
  • LED Indicators
    Yes
  • Fieldbus Protocols
    DeviceNet Slave
  • Serial Protocols
    A.O. Smith AIN Slave, A.O. Smith PDNP Master, BACnet MS/TP Client, BACnet MS/TP Server, DMX-512 Master, DMX-512 Slave, Generic Serial Master, Generic Serial Slave, M-Bus Master, Metasys N2 Master, Metasys N2 Slave,
  • Serial Protocols (Continued)
    Modbus RTU Master, Modbus RTU Slave, Modbus RTU Sniffer, MSA Chillgard Monitor, Siemens FLN Master, Siemens FLN Slave, Sullair Master, TCS Basys Master, Toshiba ASD Master, Toshiba Computer Link Master, USB Serial Sniffer Settings
  • Power Supply
    7 to 24VDC, USB
  • Field-Upgradeable
    Yes
  • User Configuration Interface
    ICC Configuration Studio via USB
  • Configuration File Upload/Download
    Yes
  • Alarms
    No
  • Network Timeout Action
    No

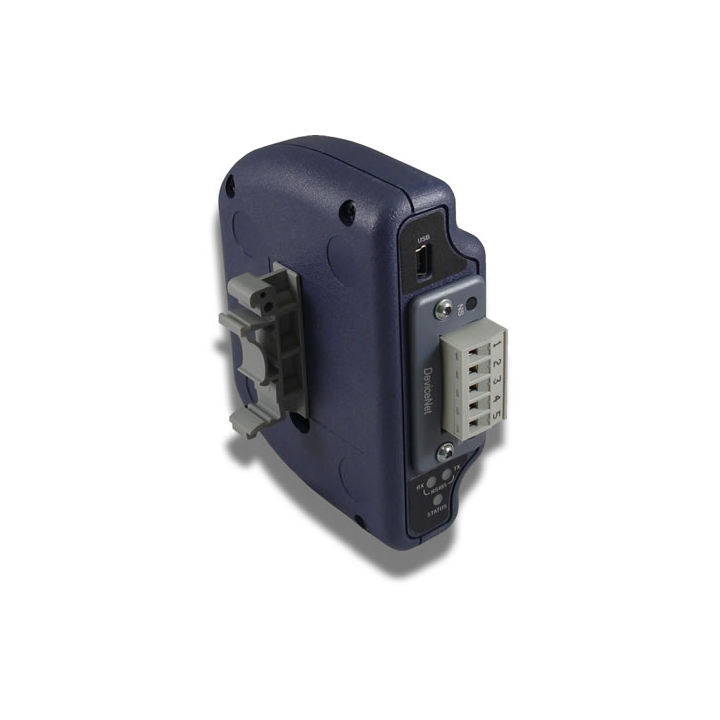

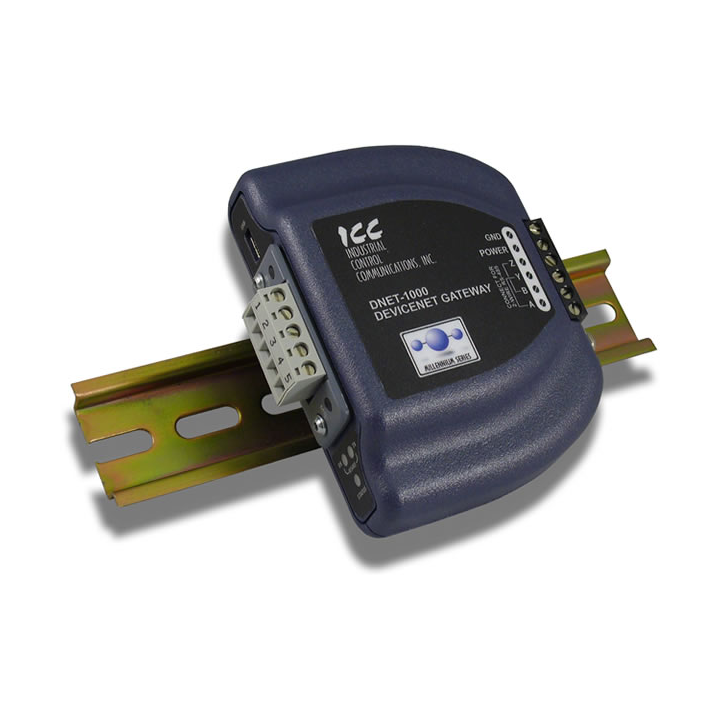

  • Mounting Options
    Desktop, DIN-rail, Panel/Wall

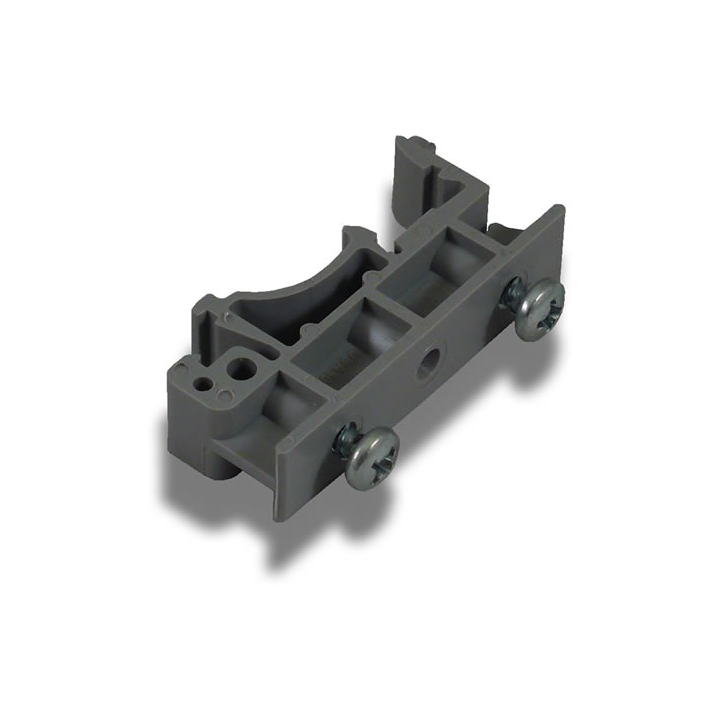

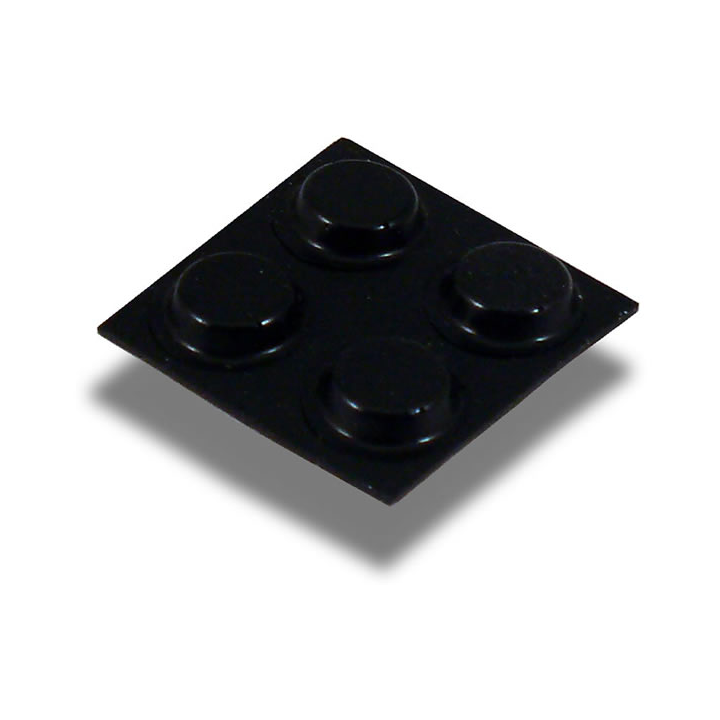

  • Mounting Hardware Included
    Yes

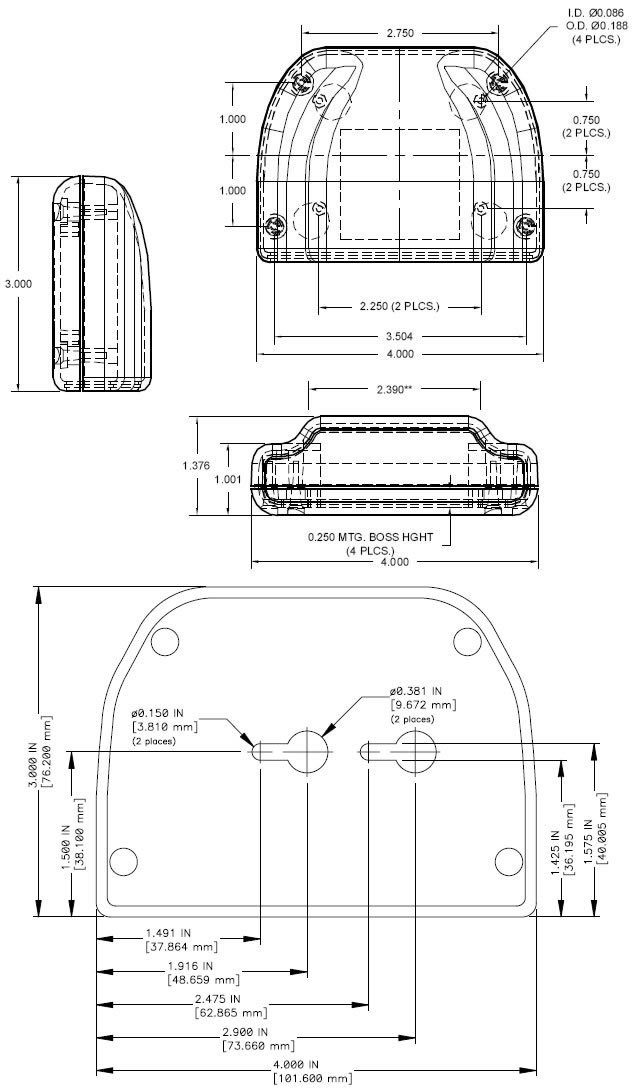

  • Length
    3.000" (76.200 mm)
  • Width
    4.000" (101.600 mm)
  • Height
    1.380" (35.052 mm)
  • RoHS Compliant
    Yes
  • Certifications
    N/A
  • Network Interface
    DeviceNet, RS-485, USB Virtual COM Port
