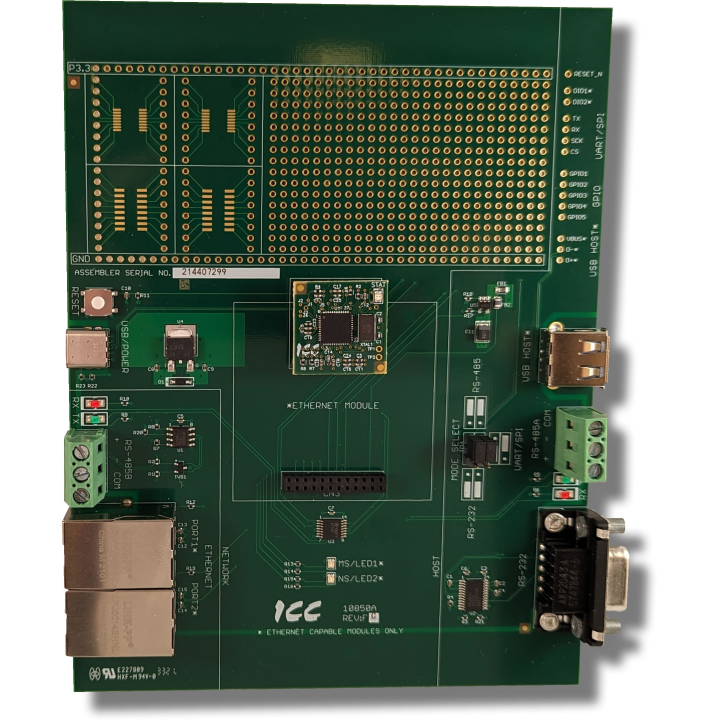

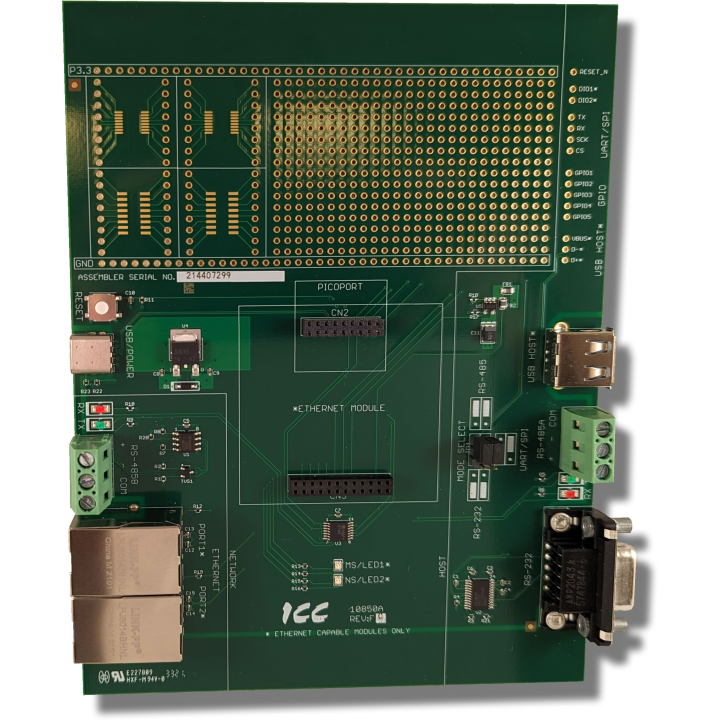

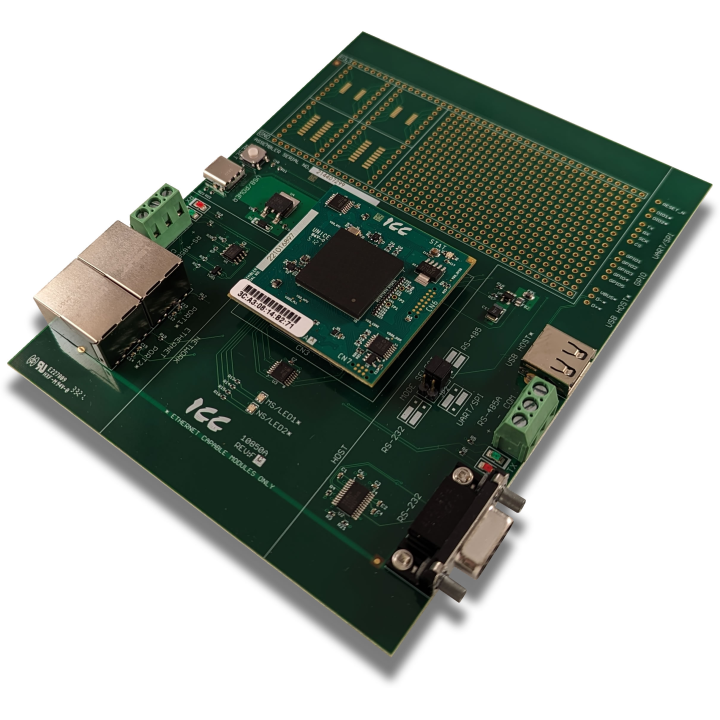

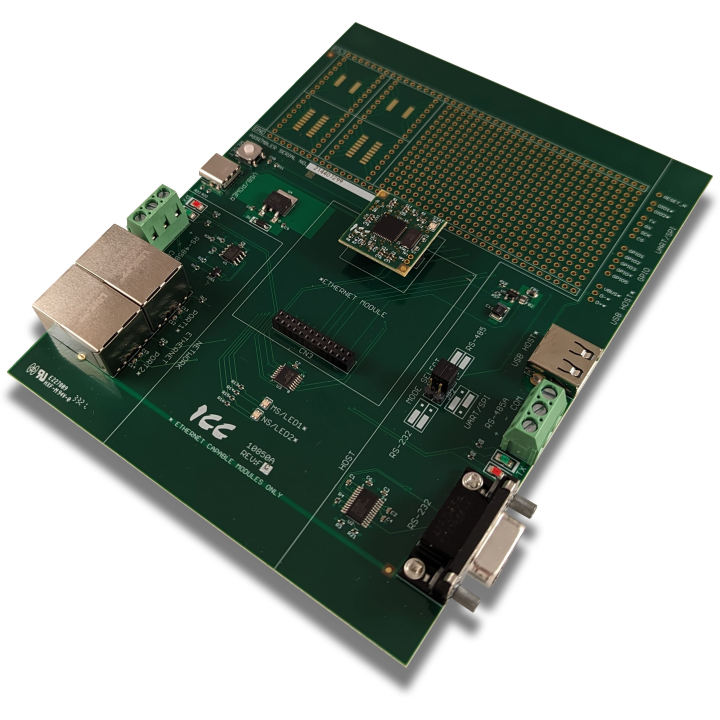

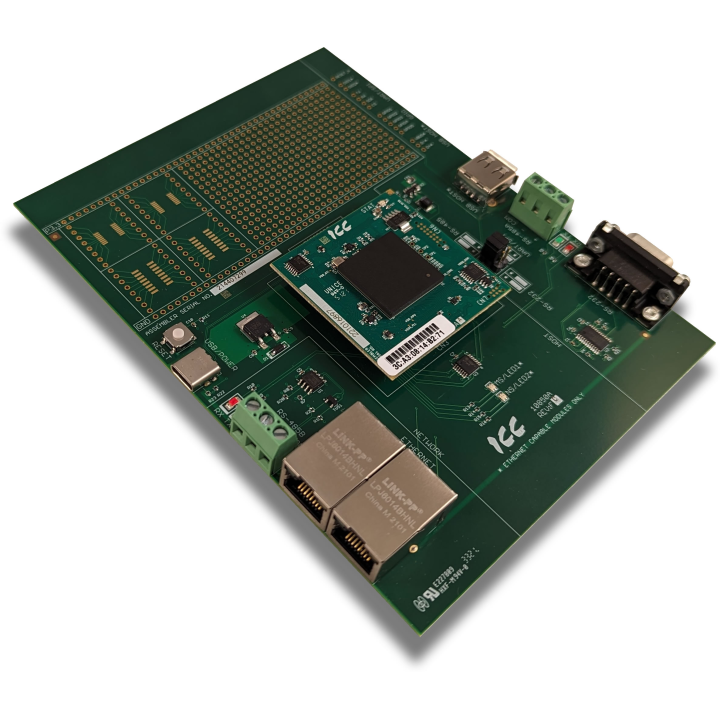

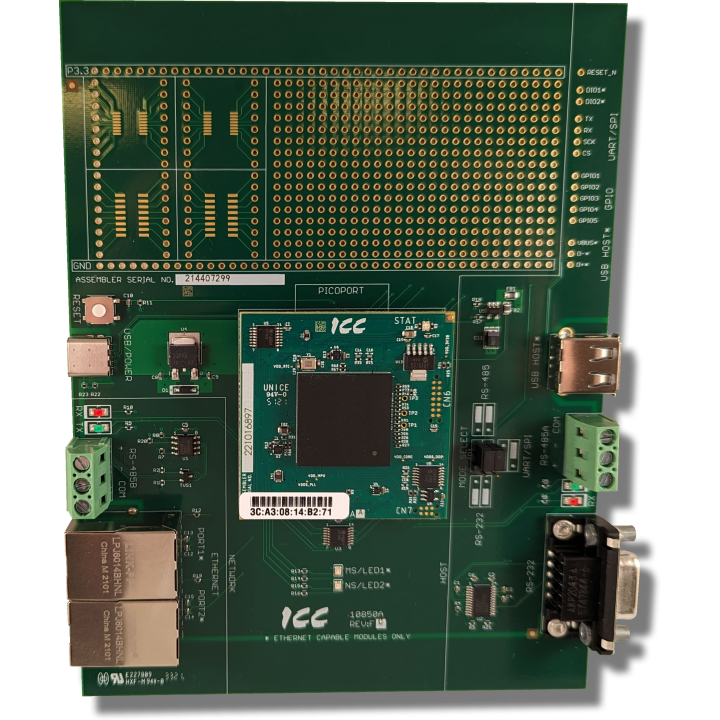

PicoPort DevKit

The PicoPort development kit allows engineers to get a jump start on integration with their equipment using their existing hardware. The development board supports up to 11^* GPIO connections for analog and digital input and output signals, dual-port Ethernet^†, USB^‡, RS-485, and a selectable serial communication interface supporting RS-485, RS-232, SPI, or UART communication. The development board also includes a breadboard area for convenient hardware prototyping.

The kit comes with a development board, USB cable, USB power adapter, and optionally, up to 5 PicoPort modules and/or up to 5 PicoPort-E modules.

The PicoPort DevKit is used in conjunction with the following products:

• PicoPort
• PicoPort-E

• PicoPort Brochure
• PicoPort-E Brochure

• PicoPort Development Kit User's Manual (March 20, 2024)

Associated Links

^* 11 GPIO connections when PicoPort-E is used. 9 GPIO connections when PicoPort is used.
^† Requires PicoPort-E module.
^‡ USB device mode only. USB host mode reserved for future use.
